Adapters 10 & 15 KPSI

View as Grid List
Sort by
Display per page

Adapter 1/2" BSP acc. EN 837 female x 1/2"BSP male, 60 degree cone

VN-8G-8GAF-SS-15K
Adapter 1/2" BSP acc. EN 837 female x 1/2"BSP male, 60 degree cone
Maximum Cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Adapter to connect the recorder to our Light Weight High Pressure Hose.
- The o-ring enables you to hand tighten the 1/2"BSP acc. EN 837 connecting and be leek free till maximum working pressure.
€13.40 excl tax

Adapter 1/2" NPT male x 1/2"BSP male, 60 degree cone

VN-8N-8G-SS-15K
Adapter 1/2" NPT male x 1/2"BSP male, 60 degree cone
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Can be used to connect our Light Weight High Pressure Hose to a 1/2" NPT female connection.
€17.80 excl tax

Double Nipple 1/2" BSP Male, 60 degree cone

DN-8G-SS-15K
Double Nipple 1/2" BSP Male, 60 degree cone
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Can be used to connect our Light Weight High Pressure Hoses together.
- Can also be used to connect out Light Weight High Pressure Hose to a straight 1/2" BSP female connection in combination with a bonded seal
€22.00 excl tax

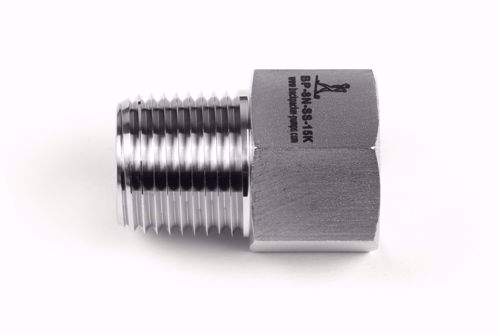

1/2" NPT Blind

BP-8N-SS-15K
1/2" NPT Blind
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

€8.30 excl tax

Adapter 1/2" BSP acc. EN 837 female swivel x 1/4"NPT male

RED-8GAF-4N-SS-10K
Adapter 1/2" BSP acc. EN 837 female swivel x 1/4"NPT male
Maximum cold working pressure 10,000 psi / 700 bar
Stainless Steel AISI 316

- The o-ring enables you to hand tighten the 1/2"BSP acc. EN 837 connecting and be leek free till maximum working pressure.
- This adapter makes it possible to easily mount a Gauge with a 1/2"BSP acc. EN 837 connection in every direction.
- When connected with a Reducer 1/2" NPT male x 1/4" NPT female it can be screwed on top of our 10K Manifold
€15.60 excl tax

Reducer 1/2" NPT male x 1/4" NPT female

RED-8N-4N-SS-15K
Reducer 1/2" NPT male x 1/4" NPT female
Maximum cold working pressure: 15,000 psi / 1.000 bar
Stainless Steel AISI 316
€15.60 excl tax

End Cap 1/2" BSP with 60 degree cone and o-ring

DC-8G-SS-10K
End Cap 1/2" BSP with 60 degree cone and o-ring, DKOR
Maximum cold working pressure 10,000 psi / 700 bar
Stainless Steel AISI 316

- 1/2"BSP, 60 degrees swivel connection with o-ring
- The o-ring enables you to hand tighten the connecting and be leek free till maximum working pressure.
€10.50 excl tax

1/2" Gauge Connection Blind

BP-8GA-SS-15K
1/2" Gauge Connection Blind
For a 1/2" BSP acc. EN 837 connection
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

€11.70 excl tax

1/2" NPT Angled Needle Valve - male x female

VSM-8N-2-1
1/2" NPT Angled Needle Valve - male x female
Maximum cold working pressure: 10,000 psi / 700 bar
Stainless Steel AISI 316
€86.00 excl tax

Double Nipple 1/2" NPT Male

DN-8N-SS-15K
Double Nipple 1/2" NPT Male
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316
€23.50 excl tax
