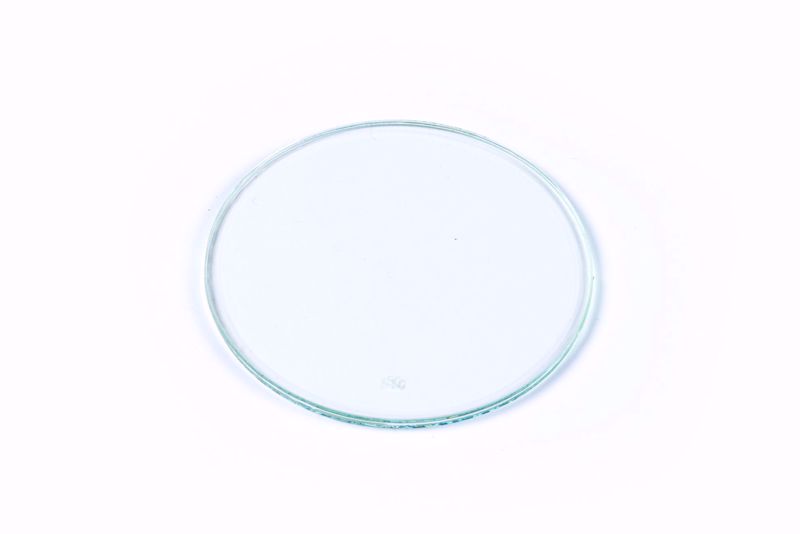

Gauge Replacement Glass Ø100mm

Portable 500 bar high flow Air Driven Hydraulic Test Pump
with a weight of only 20 Kg.

Ratio 1:60
Maximum Output Pressure: 500 bar (7,200 psi)
Maximum Flow: 11 L/min (2.90 gpm)
Maximum Air Supply: 12 bar (170 psi)
Maximum Air Consumption: 3.1 Nm3/min (110 scfm)
Working Temperature: 5-60 degree Celcius (41-140 degree Fahrenheit)

The unit is a ready to use pump and includes the following components:
-0-600 bar (0-9,000 psi) hydraulic gauge for pressure indication.
-0-8 bar 1/2" Air Filter/Regulator and a 1/2" Lubricator.
-Ball Valve in the air supply to be use as a start/stop valve.
-Geka fluid supply connection with a 1/2" NPT strainer.
-1/2" NPT female high pressure outlet.
-1/2" Needle valve to be used as a Bleed Valve.

High Pressure connection: 1/2"NPT female
Fluid Supply connection: GEKA
Air Supply connection: 1/2" BSP female
Bleed Valve: 1/2" NPT female

Standard compatible with the following fluids:
-Plain water
-Water / glycal mix
-Petroleum based oils

0-100 Bar Pressure Gauge
Ø100mm Stainless Steel Case with Safety Glass
Dual scale dial bar/psi
+/-1% accuracy of full scale
Bottom Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Adjustable pointer
Not filled but fillable with glycerin
With blow-out
Every pressure gauge has its own unique serial number

Available with calibration certificate
