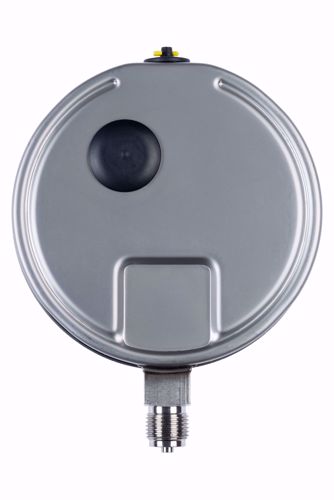

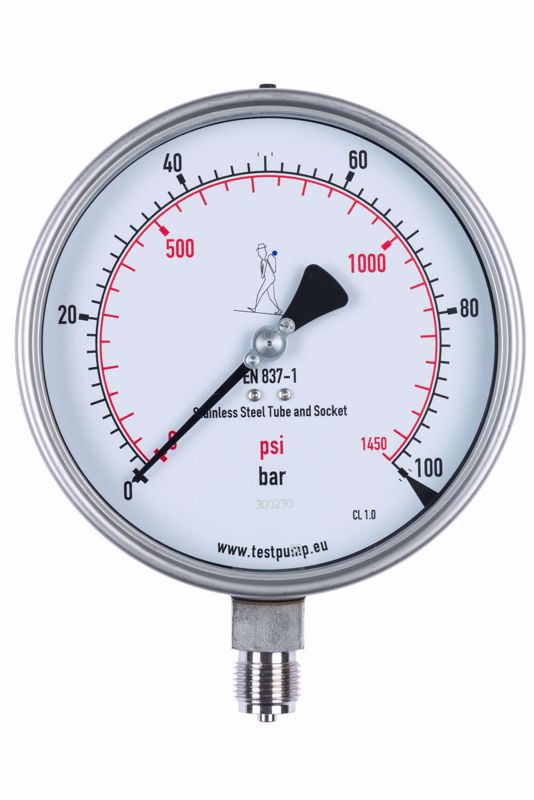

0-100 Bar Pressure Gauge, Ø150mm, 1%

Case - Pressure Gauge

140026

Case - Pressure Gauge
Suitable for a Ø100mm or Ø150mm gauge

The Pick N Pluck™ foam is pre-scored into small cubes which allow you to customize your case to meet your specific needs.

Case is delivered without Gauge and Adapters

€108.00 excl tax

Adapter 1/2" BSP acc. EN 837 female swivel x 1/4"NPT male

RED-8GAF-4N-SS-10K

Adapter 1/2" BSP acc. EN 837 female swivel x 1/4"NPT male
Maximum cold working pressure 10,000 psi / 700 bar
Stainless Steel AISI 316

- The o-ring enables you to hand tighten the 1/2"BSP acc. EN 837 connecting and be leek free till maximum working pressure.
- This adapter makes it possible to easily mount a Gauge with a 1/2"BSP acc. EN 837 connection in every direction.
- When connected with a Reducer 1/2" NPT male x 1/4" NPT female it can be screwed on top of our 10K Manifold

€18.00 excl tax

Reducer 1/2" NPT male x 1/4" NPT female

RED-8N-4N-SS-15K

Reducer 1/2" NPT male x 1/4" NPT female
Maximum cold working pressure: 15,000 psi / 1.000 bar
Stainless Steel AISI 316

€17.50 excl tax

Adapter 1/2" BSP acc. EN 837 female x 1/2"BSP male, 60 degree cone

VN-8G-8GAF-SS-15K

Adapter 1/2" BSP acc. EN 837 female x 1/2"BSP male, 60 degree cone
Maximum Cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Adapter to connect the recorder to our Light Weight High Pressure Hose.
- The o-ring enables you to hand tighten the 1/2"BSP acc. EN 837 connecting and be leek free till maximum working pressure.

€15.00 excl tax

Dust Cap 1/2" BSP

DC-8GAF

Dust Cap for a 1/2" BSP acc. EN 837 male connection
With o-ring inside
Material: HDPE

€3.75 excl tax

Spare O-ring for 1/2" BSPA female Connection

140018

Spare O-rings for 1/2" BSPA female Connection
Material: NBR-70
10 pcs

€10.00 excl tax

0-100 Bar Pressure Gauge, Ø100mm, 1%

1500-100-100

0-100 Bar Pressure Gauge
Ø100mm Stainless Steel Case with Safety Glass
Dual scale dial bar/psi
+/-1% accuracy of full scale
Bottom Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Adjustable pointer
Not filled but fillable with glycerin
With blow-out
Every pressure gauge has its own unique serial number

Available with calibration certificate

€95.00 excl tax

0-100 Bar, 1 Hour , Ø 9" Chart Recorder, 1%

1700-100-1

Ø 9" Chart Recorder
0-100 Bar
1 revolution in 1 hour
+/-1% accuracy of full scale
Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Mechanical Spring Wound Clock
Including violet felt pen
A new recorder comes with 100 Charts
Chart number: 1750-100-1

Available with calibration certificate

Click here to download the manual

€1100.00 excl tax

0-100 Bar, 24 Hour , Ø 9" Chart Recorder, 1%

1700-100-24

Ø 9" Chart Recorder
0-100 Bar
1 revolution in 24 hours
+/-1% accuracy of full scale
Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Mechanical Spring Wound Clock
Including violet felt pen
A new recorder comes with 100 Charts
Chart number: 1750-100-24
Available with calibration certificate

Click here to download the manual

€1050.00 excl tax
