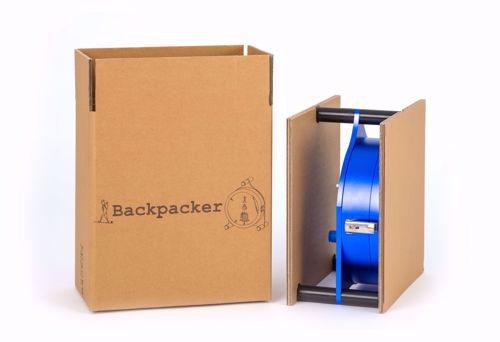

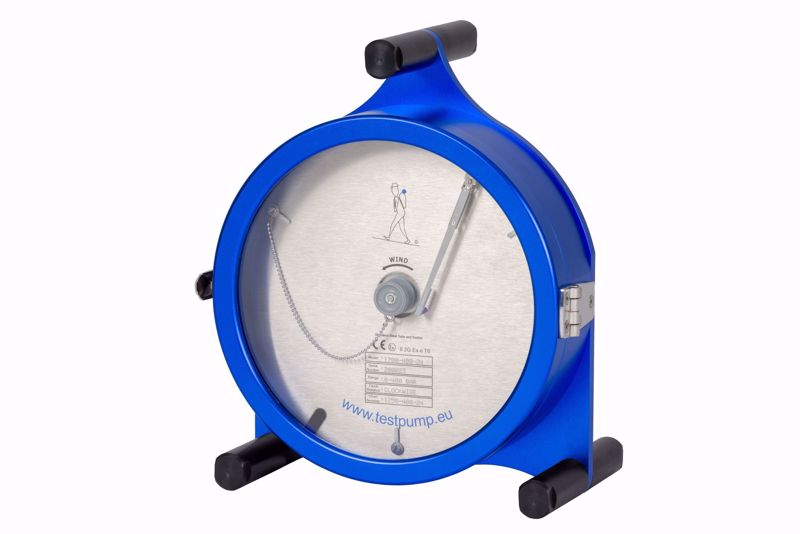

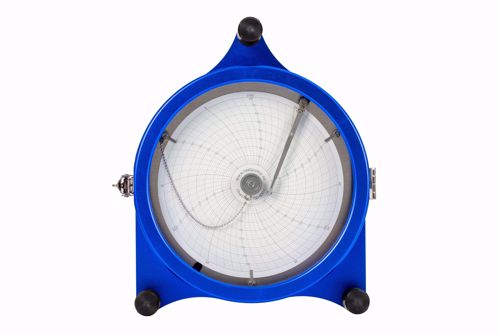

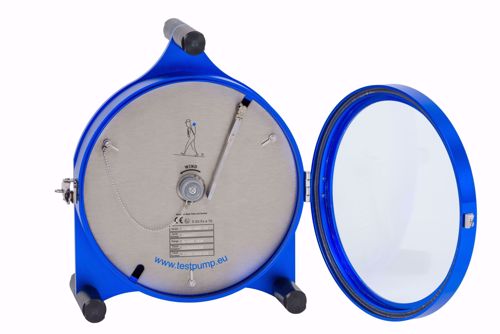

0-1000 Bar, 24 Hour, Ø 9" Chart Recorder, 1%

0-1000 bar / 24 hour Recorder Charts

1750-1000-24

Recorder Charts
1 box = 100 pcs
0-1000 bar
24 Hour
Chart number: 1750-1000-24

€70.00 excl tax

Violet Recorder Felt Pen

140019

Recorder Felt Pen
Strip with 5 pieces
Colour: Violet

€42.50 excl tax

Adapter 1/2" BSP acc. EN 837 female x 1/2"BSP male, 60 degree cone

VN-8G-8GAF-SS-15K

Adapter 1/2" BSP acc. EN 837 female x 1/2"BSP male, 60 degree cone
Maximum Cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Adapter to connect the recorder to our Light Weight High Pressure Hose.
- The o-ring enables you to hand tighten the 1/2"BSP acc. EN 837 connecting and be leek free till maximum working pressure.

€15.00 excl tax

Dust Cap 1/2" BSP

DC-8GAF

Dust Cap for a 1/2" BSP acc. EN 837 male connection
With o-ring inside
Material: HDPE

€3.75 excl tax

High Pressure Hose 700 bar

HE-10/2-5-8G

Thermoplastic High Pressure Hose with a maximum cold working pressure of 10,000psi / 700 bar.
Minimum burst pressure: 40,000 psi ( safety factor 4:1 )
Total length 5 meter.
Stainless Steel AISI 316 Fittings
1/2"BSP, 60 degrees swivel connection with o-ring

The o-ring enables you to hand tighten the connecting and be leek free till maximum working pressure.

€190.00 excl tax

0-1000 Bar Pressure Gauge, Ø150mm, 1%

1500-1000-150

0-1000 Bar Pressure Gauge
Ø150mm Stainless Steel Case with Safety Glass
Dual scale dial bar/psi
+/-1% accuracy of full scale
Bottom Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Adjustable pointer
Not filled but fillable with glycerin
With blow-out
Every pressure gauge has its own unique serial number

Available with calibration certificate

€125.00 excl tax

0-1000 Bar, 1 Hour, Ø 9" Chart Recorder, 1%

1700-1000-1

Ø 9" Chart Recorder
0-1000 Bar
1 Revolution in 1 Hour
+/-1% accuracy of full scale
Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Mechanical Spring Wound Clock
Including violet felt pen
A new recorder comes with 100 Charts
Chart number: 1750-1000-1

Available with calibration certificate

Click here to download the manual

€1100.00 excl tax
