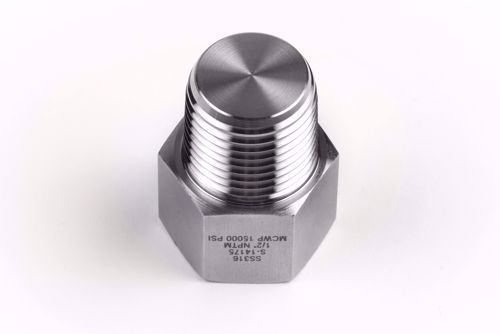

1/2" NPT Blind

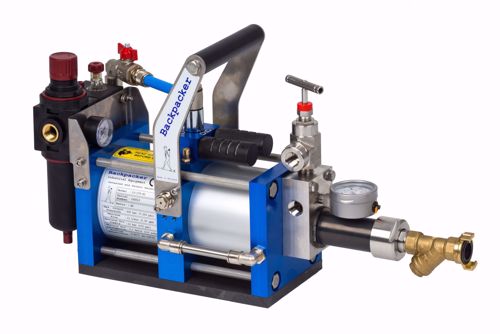

Portable 500 bar high flow Air Driven Hydraulic Test Pump
with a weight of only 20 Kg.

Ratio 1:60
Maximum Output Pressure: 500 bar (7,200 psi)
Maximum Flow: 11 L/min (2.90 gpm)
Maximum Air Supply: 12 bar (170 psi)
Maximum Air Consumption: 3.1 Nm3/min (110 scfm)
Working Temperature: 5-60 degree Celcius (41-140 degree Fahrenheit)

The unit is a ready to use pump and includes the following components:
-0-600 bar (0-9,000 psi) hydraulic gauge for pressure indication.
-0-8 bar 1/2" Air Filter/Regulator and a 1/2" Lubricator.
-Ball Valve in the air supply to be use as a start/stop valve.
-Geka fluid supply connection with a 1/2" NPT strainer.
-1/2" NPT female high pressure outlet.
-1/2" Needle valve to be used as a Bleed Valve.

High Pressure connection: 1/2"NPT female
Fluid Supply connection: GEKA
Air Supply connection: 1/2" BSP female
Bleed Valve: 1/2" NPT female

Standard compatible with the following fluids:
-Plain water
-Water / glycal mix
-Petroleum based oils

Double Nipple 1/2" BSP Male, 60 degree cone
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Can be used to connect our Light Weight High Pressure Hoses together.
- Can also be used to connect out Light Weight High Pressure Hose to a straight 1/2" BSP female connection in combination with a bonded seal

Adapter 1/2" NPT male x 1/2"BSP male, 60 degree cone
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Can be used to connect our Light Weight High Pressure Hose to a 1/2" NPT female connection.

Adapter 1/2" BSP acc. EN 837 female x 1/2"BSP male, 60 degree cone
Maximum Cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Adapter to connect the recorder to our Light Weight High Pressure Hose.
- The o-ring enables you to hand tighten the 1/2"BSP acc. EN 837 connecting and be leek free till maximum working pressure.

Adapter 1/2" BSP acc. EN 837 female swivel x 1/4"NPT male
Maximum cold working pressure 10,000 psi / 700 bar
Stainless Steel AISI 316

- The o-ring enables you to hand tighten the 1/2"BSP acc. EN 837 connecting and be leek free till maximum working pressure.
- This adapter makes it possible to easily mount a Gauge with a 1/2"BSP acc. EN 837 connection in every direction.
- When connected with a Reducer 1/2" NPT male x 1/4" NPT female it can be screwed on top of our 10K Manifold
