Double Nipple 1/2" BSP Male, 60 degree cone
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Can be used to connect our Light Weight High Pressure Hoses together.
- Can also be used to connect out Light Weight High Pressure Hose to a straight 1/2" BSP female connection in combination with a bonded seal

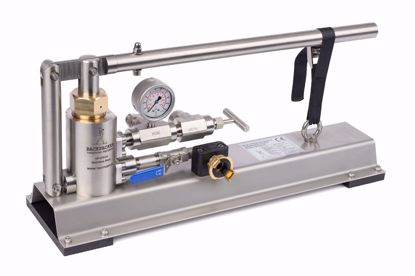

Portable Hand Pump 70 bar

Maximum Output Pressure: 70 Bar at 70 Kg.
Maximum Force at Lever: 70 Kg.
Displacement: 32cc per stroke.
Working Temperature: 5-60 degree Celcius (41-140 degree Fahrenheit)

The unit is a ready to use pump and includes the following components:
-0-100 bar (0-1,450 psi) hydraulic gauge for pressure indication.
-Geka fluid supply connection.
-Ball Valve in the fluid supply.
-1/2" NPT female high pressure outlet.
-1/2" Needle valve to be used as a Bleed Valve.

High Pressure connection: 1/2"NPT female
Fluid Supply connection: GEKA
Bleed Valve: 1/2" NPT female

Standard compatible with the following fluids:
-Plain water
-Water / glycol mix
-Petroleum based oils

Dimensions: 615 x 170 x 280 ( high ) mm.
Weight = 15 Kg.

Pressure Relief Valve - High Pressure - 15 KPSI

Pressure Connection : 1/4" NPT Female
Outlet Connection : 1/4" NPT Female

Pressure Range ( Red Spring ) :
- 7,500 - 15,000 PSI
- 517 - 1.034 bar

Maximum cold working pressure Relief Valve Body : 15,000 psi / 1.000 bar
Material Relief Valve Body : Stainless Steel AISI 316
Material Seal : FKM

0-40 Bar Pressure Gauge
Ø100mm Stainless Steel Case with Safety Glass
Dual scale dial bar/psi
+/-1% accuracy of full scale
Bottom Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Adjustable pointer
Not filled but fillable with glycerin
With blow-out
Every pressure gauge has its own unique serial number

Available with calibration certificate

Ø 9" Chart Recorder
0-40 Bar
1 Revolution in 1 Hour
+/-1% accuracy of full scale
Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Mechanical Spring Wound Clock
Including violet felt pen
A new recorder comes with 100 charts
Chart number: 1750-40-1

Available with calibration certificate

Click here to download the manual

1/2" NPT Check Valve - Female x Female
Maximum cold working pressure 10,000 psi / 700 bar
Stainless Steel AISI 316

6 bar Pressure Relief Valve Assembly
Designed for using with a 6 bar Gauge and/or Recorder

Pressure Connection : 1/2"BSP, 60 degrees swivel connection with o-ring
Outlet Connection : 1/4" NPT Female

Relief Pressure set at 5 bar
Spring color : White ( 3.4 - 24 bar )

Maximum cold working pressure Relief Valve Body : 6,000 psi / 413 bar
Material Relief Valve Body : Stainless Steel AISI 316
Material Seal - Relief Valve : FKM
Material Adapter : Stainless Steel AISI 316
Material Seal - Adapter : NBR

Adapter 1/2" BSP acc. EN 837 female x 1/2"BSP male, 60 degree cone
Maximum Cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

- Adapter to connect the recorder to our Light Weight High Pressure Hose.
- The o-ring enables you to hand tighten the 1/2"BSP acc. EN 837 connecting and be leek free till maximum working pressure.

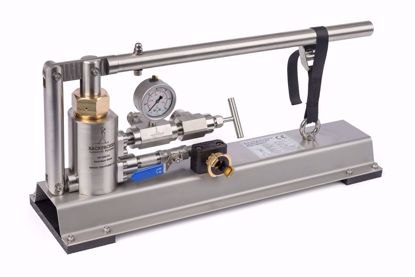

Portable Hand Pump 500 bar

Maximum Output Pressure: 500 Bar at 70 Kg.
Maximum Force at Lever: 70 Kg.
Displacement: 4,5cc per stroke.
Working Temperature: 5-60 degree Celcius (41-140 degree Fahrenheit)

The unit is a ready to use pump and includes the following components:
-0-600 bar (0-8,700 psi) hydraulic gauge for pressure indication.
-Geka fluid supply connection.
-Ball Valve in the fluid supply.
-1/2" NPT female high pressure outlet.
-1/2" Needle valve to be used as a Bleed Valve.

High Pressure connection: 1/2"NPT female
Fluid Supply connection: GEKA
Bleed Valve: 1/2" NPT female

Standard compatible with the following fluids:
-Plain water
-Water / glycol mix
-Petroleum based oils

Dimensions: 615 x 170 x 280 ( high ) mm.
Weight = 15 Kg.

0-40 Bar Pressure Gauge
Ø150mm Stainless Steel Case with Safety Glass
Dual scale dial bar/psi
+/-1% accuracy of full scale
Bottom Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Adjustable pointer
Not filled but fillable with glycerin
With blow-out
Every pressure gauge has its own unique serial number

Available with calibration certificate
