Ø 9" Chart Recorder
0-40 Bar
1 Revolution in 24 Hour
+/-1% accuracy of full scale
Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Mechanical Spring Wound Clock
Including violet felt pen
A new recorder comes with 100 charts
Chart number: 1750-40-24

Available with calibration certificate

Click here to download the manual

1/2" NPT Blind
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

1/4" NPT Blind
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

16 bar Pressure Relief Valve Assembly
Designed for using with a 16 bar Gauge and/or Recorder

Pressure Connection : 1/2"BSP, 60 degrees swivel connection with o-ring
Outlet Connection : 1/4" NPT Female

Relief Pressure set at 14 bar
Spring color : White ( 3.4 - 24 bar )

Maximum cold working pressure Relief Valve Body : 6,000 psi / 413 bar
Material Relief Valve Body : Stainless Steel AISI 316
Material Seal - Relief Valve : FKM
Material Adapter : Stainless Steel AISI 316
Material Seal - Adapter : NBR

0-100 Bar Pressure Gauge
Ø100mm Stainless Steel Case with Safety Glass
Dual scale dial bar/psi
+/-1% accuracy of full scale
Bottom Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Adjustable pointer
Not filled but fillable with glycerin
With blow-out
Every pressure gauge has its own unique serial number

Available with calibration certificate

Ø 9" Chart Recorder
0-100 Bar
1 revolution in 1 hour
+/-1% accuracy of full scale
Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Mechanical Spring Wound Clock
Including violet felt pen
A new recorder comes with 100 Charts
Chart number: 1750-100-1

Available with calibration certificate

Click here to download the manual

40 bar Pressure Relief Valve Assembly
Designed for using with a 40 bar Gauge and/or Recorder

Pressure Connection : 1/2"BSP, 60 degrees swivel connection with o-ring
Outlet Connection : 1/4" NPT Female

Relief Pressure set at 35 bar
Spring color : Blue ( 24 - 52 bar )

Maximum cold working pressure Relief Valve Body : 6,000 psi / 413 bar
Material Relief Valve Body : Stainless Steel AISI 316
Material Seal - Relief Valve : FKM
Material Adapter : Stainless Steel AISI 316
Material Seal - Adapter : NBR

Reducer 1/2" NPT male x 1/4" NPT female
Maximum cold working pressure: 15,000 psi / 1.000 bar
Stainless Steel AISI 316

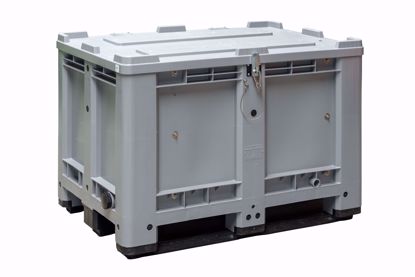

PE Pallet box with Compartments and Lid.

Lid fixed with steel Hinges and Latch
Compartments made from Polypropylene Sheet and Stainless Steel Brackets
Bottom of the box is lined with a rubber mat.

Dimensions: 1200 x 800 x 840 ( high ) mm.
Weight = 85 Kg.

Easy to clean and Weather-resistant

0-100 Bar Pressure Gauge
Ø150mm Stainless Steel Case with Safety Glass
Dual scale dial bar/psi
+/-1% accuracy of full scale
Bottom Connection: 1/2" BSP acc. EN 837
Wetted parts Stainless Steel AISI 316
Adjustable pointer
Not filled but fillable with glycerin
With blow-out
Every pressure gauge has its own unique serial number

Available with calibration certificate
